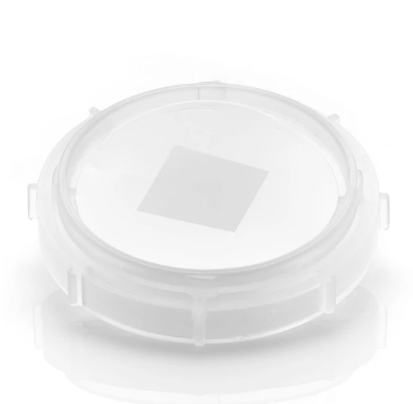

Easy Transfer: Monolayer Graphene on Polymer Film

Easy Transfer: Monolayer Graphene on Polymer Film

from 80.00

Graphene Film

  • Available in 10mm x 10mm or 1in x 1in films

  • Growth method: CVD synthesis

  • Appearance (color): Transparent

  • Transparency: > 97%

  • Coverage: > 98%

  • Number of graphene layers: 1

  • Thickness (theoretical): 0.345 nm

  • Sheet Resistance on SiO2/Si: 450±40 Ohms/sq (1cm x1cm)

  • Grain size: Up to 20 μm

Why use easy transfer

  • Avoids metal etching

  • Avoids hazardous chemical handling

  • Manipulation of thin film done at Manufacturer

  • Bottom layer removed

Quality Control

All our samples are subjected to a rigorous QC in order to ensure a high quality and reproducibility of the graphene. All our CVD materials are processed in Clean Room Class 1000. Each batch must pass the following tests:

  • Raman Spectroscopy on each batch: I(G)/I(2D)<0.7; I(D)/I(G)<0.05

  • Optical Microscopy inspection of each individual sample to ensure good transfer quality and purity

If your application requires more specific controls (AFM, SEM...) please do not hesitate to contact us.

Applications

Graphene research, Flexible batteries, Electronics, Aerospace industry, MEMS and NEMS, Microactuators, Conductive coatings
